2023-11-13 Ratel for Solid Mechanics#

Last time#

  • Stabilized methods

  • Dispersion diagrams

  • Mixed finite elements

Today#

  • Intro to solid mechanics, Ratel

  • Singularities and \(hp\) adaptivity

  • Cost of sparse matrices

  • GPU performance with Ratel and context

using Plots
default(linewidth=3)
using LinearAlgebra
using SparseArrays

Solid mechanics: Ratel Theory Guide#

Material coordinates#

The current configuration \(x\) is a function of the initial configuration \(X\). We typically solve for displacement \(u = x - X\), and define the deformation gradient

\[ F = \frac{\partial x}{\partial X} = I + \underbrace{\frac{\partial u}{\partial X}}_H\]
where \(H\) is known as displacement gradient.

Conservation#

Mass by definition of density#

Momentum by equations we solve#

Angular momentum by symmetry of stress and strain tensors#

Momentum balance in initial configuration#

\[\nabla\cdot \mathbf F \mathbf S = 0\]

where \(\mathbf F = I + H\) and \(\mathbf S\) is the symmetric stress tensor (Second Piola-Kirchhoff tensor).

Strain measures#

Stress \(\mathbf S\) must be defined as a function of displacement. A common choice is to define the right Cauchy-Green tensor

\[ C = F^T F\]

This has value \(I\) for zero strain. A better formulation uses

\[ E = \frac 1 2 (C - I) = \underbrace{\frac 1 2 (H + H^T + H^T H)}_{\text{stable}}\]

Neo-Hookean model#

Strain energy density \begin{aligned} \psi \left(\mathbf{E} \right) &= \frac{\lambda}{2} \left( \log J \right)^2 - \mu \log J + \frac \mu 2 \left( \operatorname{trace} \mathbf{C} - 3 \right) \ &= \frac{\lambda}{2} \left( \log J \right)^2 - \mu \log J + \mu \operatorname{trace} \mathbf{E}, \end{aligned}

\[\mathbf S = \frac{\partial \psi}{\partial \mathbf E}\]

Nonlinear solid mechanics#

Industrial models are riddled with singularities#

../_images/gordon-bell-2004-structure.png
  • Every reentrant corner

  • Every Dirichlet (fixed/clamped) to Neumann boundary transitien

(From Bhardwaj et al, 2002.)

The mathematician’s way: \(hp\) adaptive finite elements#

Elliptic PDE always have singularities at reentrant corners (and Dirichlet to Neumann boundary transitions).

https://www.dealii.org/images/steps/developer/step-27-solution.png

How does it work?#

High order to resolve when solution is smooth, tiny low-order elements near singularities.

Deal.II hp refinement

(source: Deal.II step 27)

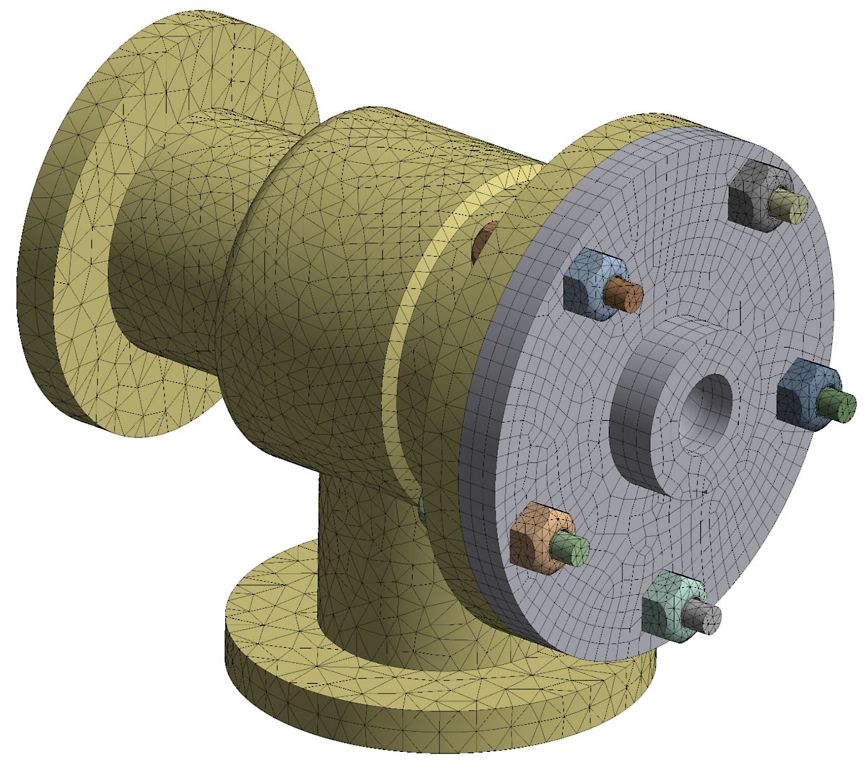

What meshes do engineers use?#

https://images.ansys.com/is/image/ansys/fundamentals-of-fea-meshing-cages-motorcycle-pump?&wid=866&op_usm=0.9,1.0,20,0&fit=constrain,0

source: Ansys blog

Approximation constants are good for high order#

../_images/accuracy_study_annotated.svg

Spurious stress singularities#

../_images/refinement_mesh.png
  • Geometric model has a round cylinder, no singularity

  • Linear meshes have weak reentrant corners

  • Moving to quadratic geometry elements is generally good enough

  • Gmsh supports arbitrary order

Why matrix-free?#

  • Assembled matrices need at least 4 bytes transferred per flop. Hardware does 10 flops per byte.

  • Matrix-free methods store and move less data, compute faster.

../_images/flop-per-byte-dp-2022.svg../_images/TensorVsAssembly-qstore.svg

Matrix-free is faster for \(Q_1\) elements#

../_images/schwarz-apply.svg

\(p\)-multigrid algorithm and cost breakdown#

../_images/p-mg-cycle.png ../_images/op_schematic.svg

Nonlinear solve efficiency#

\(Q_2\) elements#

../_images/schwarz-q2-t20-r2-l2-SNESSolve.svg

\(Q_3\) elements#

../_images/schwarz-q3-t20-r2-l1-SNESSolve.svg

Linear solve efficiency#

\(Q_2\) elements#

../_images/schwarz-q2-t20-r2-l2-KSPSolve.svg

\(Q_3\) elements#

../_images/schwarz-q3-t20-r2-l1-KSPSolve.svg
  • Coarse solver is hypre BoomerAMG tuned configured for elasticity; thanks Victor Paludetto Magri.

Preconditioner setup efficiency#

\(Q_2\) elements#

../_images/schwarz-q2-t20-r2-l2-PCSetUp.svg

\(Q_3\) elements#

../_images/schwarz-q3-t20-r2-l1-PCSetUp.svg

One node of Crusher vs historical Gordon Bell#

184 MDoF \(Q_2\) elements nonlinear analysis in seconds#

2002 Gordon Bell (Bhardwaj et al)#

../_images/gordon-bell-2002-mems.png ../_images/gordon-bell-2002-mems-table.png

2004 Gordon Bell (Adams et al)#

../_images/gordon-bell-2004-bone.png ../_images/gordon-bell-2004-bone-scaling.jpg

Old performance model#

Iterative solvers: Bandwidth#

  • SpMV arithmetic intensity of 1/6 flop/byte

  • Preconditioners also mostly bandwidth

    • Architectural latency a big problem on GPUs, especially for sparse triangular solves.

    • Sparse matrix-matrix products for AMG setup

Direct solvers: Bandwidth and Dense compute#

  • Leaf work in sparse direct solves

  • Dense factorization of supernodes

    • Fundamentally nonscalable, granularity on GPUs is already too big to apply on subdomains

  • Research on H-matrix approximations (e.g., in STRUMPACK)

New performance model#

Still mostly bandwidth#

  • Reduce storage needed at quadrature points

    • Half the cost of a sparse matrix already for linear elements

    • Big efficiency gains for high order

  • Assembled coarse levels are much smaller.

Compute#

  • Kernel fusion is necessary

  • Balance vectorization with cache/occupancy

  • \(O(n)\), but benefits from BLIS-like abstractions | BLIS | libCEED | |——|———| | packing | batched element restriction | | microkernel | basis action | | ? | user-provided qfunctions |

Solids: efficient matrix-free Jacobians#

cf. Davydov et al. (2020)#

../_images/libceed-solids-initial-current.png ../_images/libceed-solids-jacobian-table.png

Stable formulations for large-deformation solid mechanics#

Solving for \(\mathbf u(\mathbf X)\). Let \(H = \frac{\partial \mathbf u}{\partial \mathbf X}\) (displacement gradient) and \(F = I + H\) (deformation gradient).

Textbook approach#

  • Stress as a function of \(F\): \(J = \operatorname{det} F\), \(C = F^T F\)

    \[S = \lambda \log J\, C^{-1} + \mu (I - C^{-1})\]

Unstable for small strain, \(F \approx I\) and \(J \approx 1\).

Stable approach#

  • Stable strain calculation

    \[E = \underbrace{(C - I)/2}_{\text{unstable}} = (H + H^T + H^T H)/2\]

  • Compute \(J_{-1} = J - 1\) in a stable way

  • Stress

    \[S = \lambda \operatorname{\tt log1p}J_{-1}\, C^{-1} + 2 \mu C^{-1} E\]

../_images/stable-neo-hookean.svg

This opens the door to dynamic mixed precision algorithms, with computationally intensive physics evaluated using single precision.

Outlook: https://ratel.micromorph.org#

  • You can move from \(Q_1\) to \(Q_2\) elements for about 2x cost (despite 8x more DoFs)

  • Mesh to resolve geometry, \(p\)-refine to pragmatic accuracy

  • libCEED isn’t just for high order; already 2x operator apply benefit for \(Q_1\)

  • Gordon Bell scale from 20 years ago \(\mapsto\) interactive on a workstation (if you can buy MI250X 😊)

  • \(p\)-multigrid, low-memory representation of matrix-free Jacobian

  • Multi-node GPU on CUDA and ROCm

  • Also good for implicit dynamics
